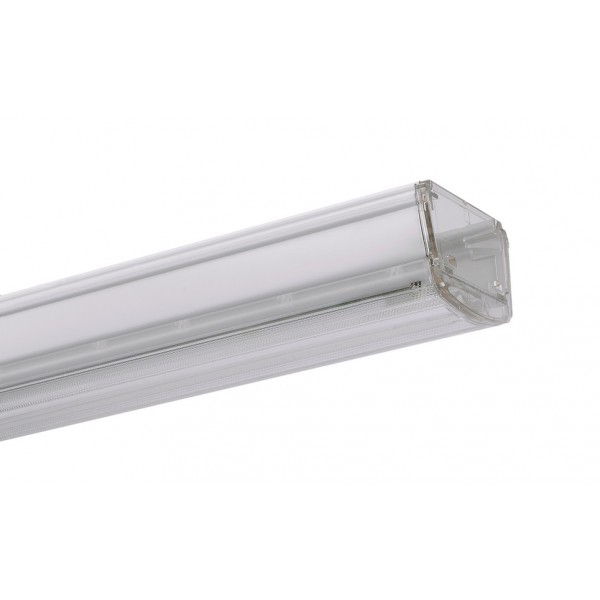

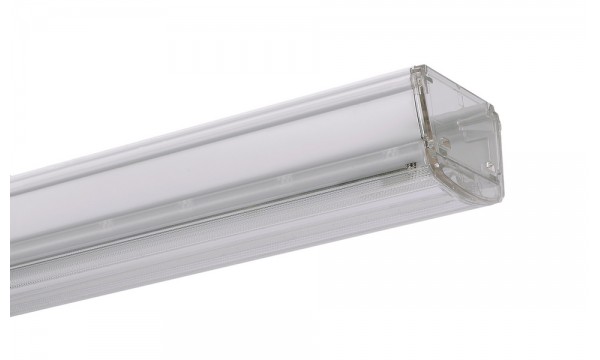

Linear connected to the line 195 lm/W

Linear connected to the line 195 lm/W

High efficiency luminaire (195 lm / W). Can be connected in line or mounted individually. Professional solution for office, shop, warehouse lighting. With the help of optical elements, different angles of light scattering are obtained. Can be completed with various additional luminaire elements: emergency module, motion sensor, module for accent luminaires. Shape connections can be used to connect various shapes. Low glare factor. Extremely simple and quick installation.

Light characteristics
  • Lighting Effectiveness: 195 lm/W
  • Beam Angle: 30°; 60°; 90°; 120°; DA20°; 25°L/R
  • Temperature (CCT): 2700K-6500K
  • Color Rendering Index (CRI): RA≥80; RA≥90
  • Unified Glare Rating (UGR): <19; <22
  • Standard deviation of color matching (MacAdam) SDCM: <3
Common parameters
  • IP Rating: IP20
  • Housing: Aluminium; Steel
  • Warranty: 5 years
  • Certificates: CE; ROHS
Electrical data
  • Voltage: 220-240V AC
  • Power Factor (PF): >0,95
  • Power supply brand: BOKE; TRIDONIC
Operating conditions
  • Life time (LM80): ≥50000 h
  • Ambient Temperature: -25°C to +40°C
  • Dimmable: 1-10V; DALI
Model Power Light flux Size (mm) Photometry
LT-1535N99-R 35W (20W; 25W; 30W) 6825 lm 1500x76x70 20W-35W.rar
LT-1550N99-R 50W (35W; 40W; 45W) 9750 lm 1500x76x70 35W-50W.rar
LT-1560N99-R 60W (36W; 44W; 52W) 11700 lm 1500x76x70 55W-65W.rar
LT-1570N99-R 70W (55W; 60W; 65W) 13650 lm 1500x76x70
LT-1510N99-R 100W (70W; 80W; 90W) 19500 lm 1500x76x70 55W-100W.rar
LTR1505N-9-R
LTR1508N-9-R
LTR1512N-9-R
Sujungimo jungtys
"X" Node Connector
"L" Node Connector
"T" Node Connector
Šviestuvo elementai
Apšvietos kampai
