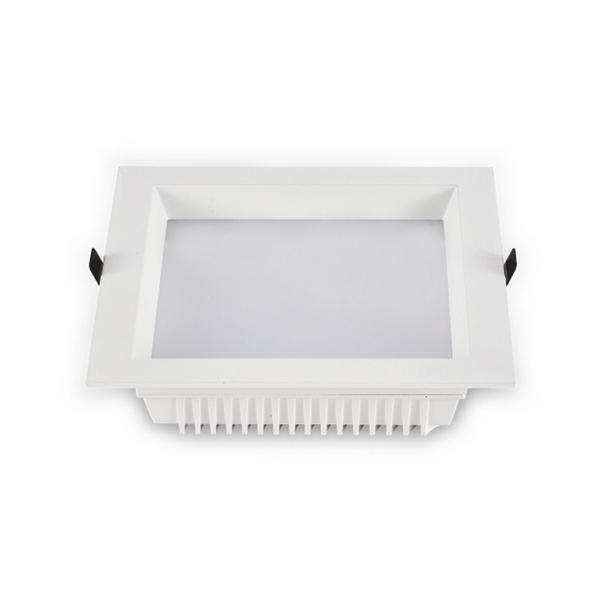

LED Downlight IP54 CD9 120/130 LM/W

In Stock LED Downlight IP54 CD9 120/130 LM/W

Downlight with low glare. A good solution for lighting commercial premises, supermarkets, hotels, offices or ancillary premises. Efficiency 120 Lm / W or 130 Lm / W. Can be equipped with dimmable power supplies 0-10V, Triac, DALI. Protection factor IP54.

Light characteristics
  • Lighting Effectiveness: 120 lm/W; 130 lm/W
  • Beam Angle: 110°
  • Temperature (CCT): 3000K-6500K
  • Color Rendering Index (CRI): Ra≥80
  • LED chip type: SMD 2835
Common parameters
  • IP Rating: IP54
  • IK rating: IK04
  • Housing: Aluminum
  • Housing colour: Black; White
  • Warranty: 5 years
  • Certificates: CE; ROHS
Electrical data
  • Voltage: AC 200-240V
  • Power Factor (PF): >0.9
  • Harmonic Distortion: 15<% (THD)
  • Power supply brand: EAGLERISE
  • Electrical Safety Class: II
  • Voltage after the power supply: 24-42V DC
Operating conditions
  • Life time (LM80): 50000h
  • Light Output Decay: 0.05
  • Ambient Temperature: -20°C to +45°C
  • Dimmable: 0-10V; DALI; TRIAC
Model In Stock Power Light flux Cut size (mm) Size (mm)
DSR- 12W 1560 lm φ125 ф140x45
DSR- 15W 1800 lm φ125 ф140x45
DSR- 15W 1800 lm φ170 ф190x45
DSR- 15W 1950 lm φ170 ф190x45
DSR- 20W 2400 lm φ170 ф190x45
DSR- 20W 2600 lm φ170 ф190x45
DSR- 25W 3000 lm φ170 ф190x45
DSR- 25W 3000 lm φ200 ф228x45
DSR- 25W 3250 lm φ200 ф228x45
DSS- 25W 3000 lm 167x167x54 145x145
DSR- 30W 3600 lm φ200 ф228x45
DSR- 30W 3900 lm φ200 ф228x45
DSR- 36W 4320 lm φ200 ф228x45
DSS- 36W 4320 lm 215x215x55 185x185
Išmatavimai
