LED floodlight for facades

NEW LED floodlight for facades
LED floodlight for facades LED floodlight for facades LED floodlight for facades LED floodlight for facades
Enquire Product PDF

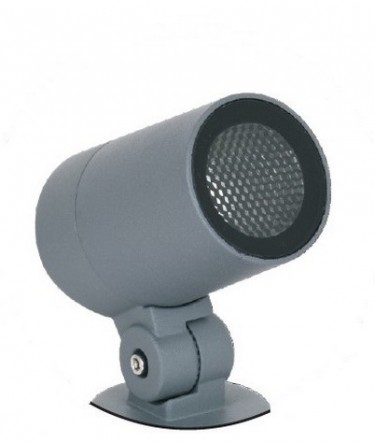

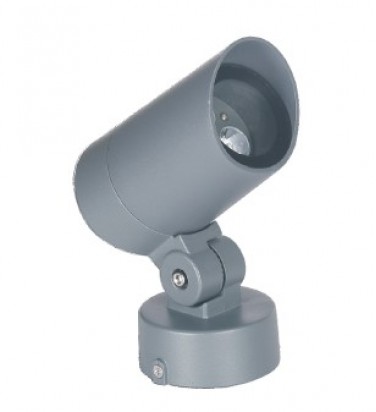

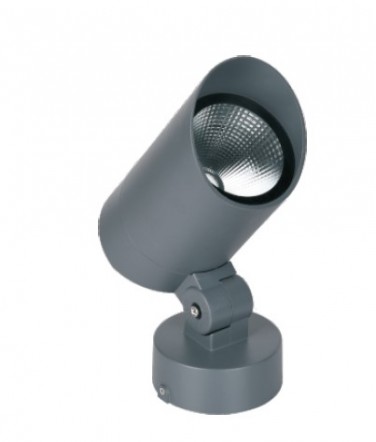

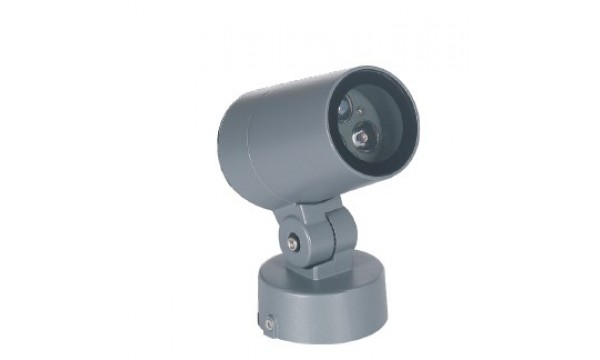

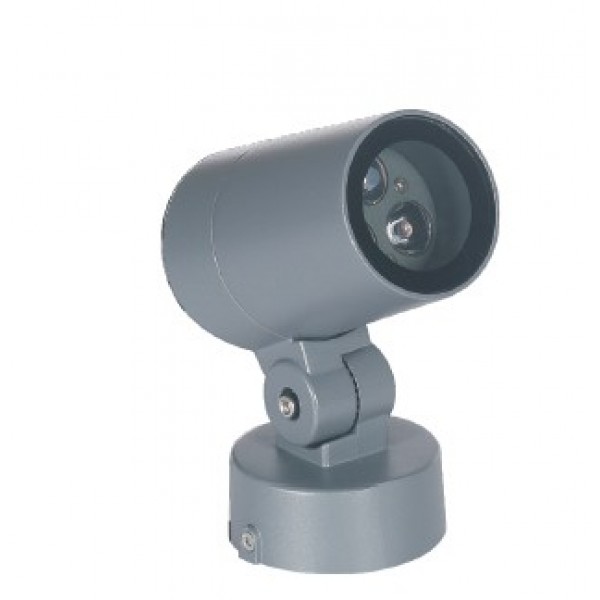

A small outdoor spotlight designed to illuminate outdoor spaces and building facades to highlight a specific location: an entrance, a plant, a part of a building. It has a wide selection of mounting options and beam angles.

Light characteristics
  • Lighting Effectiveness: 100 lm/W
  • Beam Angle: 8°; 15°; 25°; 30°; 45°; 60°; 120°
  • Temperature (CCT): 3000K-6500K
  • Color Rendering Index (CRI): Ra≥80
  • LED chip type: SMD; COB
  • LED chip brand: CREE; OSRAM; LUMILEDS
Common parameters
  • IP Rating: IP65; IP66
  • IK rating: IK09
  • Housing: Aluminium
  • Housing colour: Grey
  • Warranty: 5 years
  • Certificates: CE; ROHS
Electrical data
  • Voltage: AC 200-240V
  • Power Factor (PF): >0.9
  • Harmonic Distortion: <10% (THD)
  • Power Supply Efficiency: 90%
  • Electrical Safety Class: I; II
Operating conditions
  • Life time (LM80): 50000h
  • Light Output Decay: 10%~15%
  • Ambient Temperature: -30°C to +40°C
  • Permissible ambient humidity: 10%-90%
  • Dimmable: 0-10V; DALI
Model Power Light flux Size (mm)
FLF007N6G-C 7W 700 lm φ60x103x65
FLF012N6G-C 12W 1200 lm φ80x135x95
FLF015N6G-C 15W 1500 lm φ100x155x100
FLF024N6G-C 24W 2400 lm φ120x180x110
FLF045N6G-C 45W 4500 lm φ140x200x110
