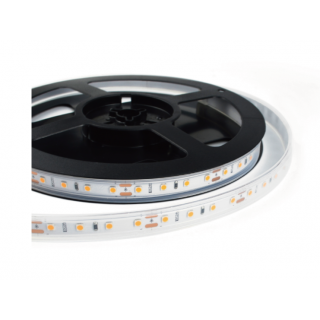

LED Strips with optic

LED Strips with optic

A special feature of this LED strip is the angle of light scattering formed with the help of optics. This may be relevant for even wall lighting or for adjusting the direction of light flow. The optics of the strip are resistant to UV radiation. Can be installed outdoors.

Light characteristics
  • Lighting Effectiveness: ≥105 lm/W
  • Beam Angle: 15°; 30°; 45°; 60°; 20°x45°; 20°x45°x10°
  • Temperature (CCT): 2700K; 3000K; 4000K; 5000K
  • Color Rendering Index (CRI): RA≥80
  • LED chip type: SMD 3030
  • LED chip brand: PHILIPS
Common parameters
  • IP Rating: IP67
  • IK rating: IK08
  • Warranty: 2 yrs
  • Certificates: CE; ROHS
Electrical data
  • Voltage after the power supply: 24V DC
Operating conditions
  • Ambient Temperature: -25°C to +50°C
Model Power Light flux LED Chips (pcs) Pieces in Package LED Strip Width (mm)
S-18N27L-4FA 18W/m 1890 lm 24 15 19,5
S-24N27L-4FA 24W/m 2520 lm 48 15 19,5
