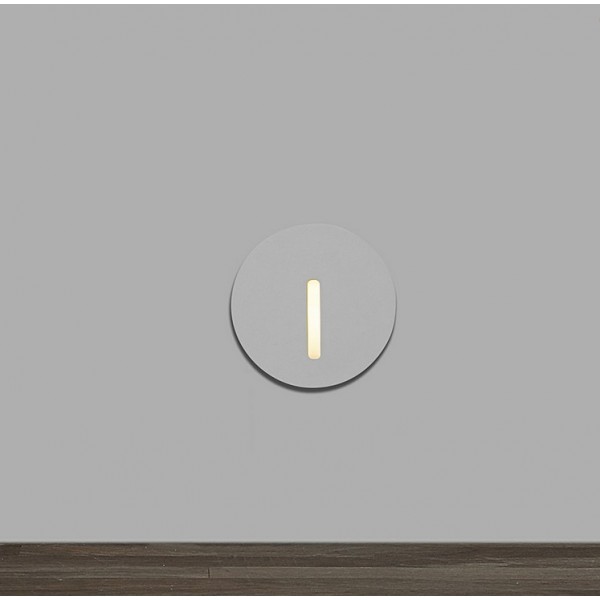

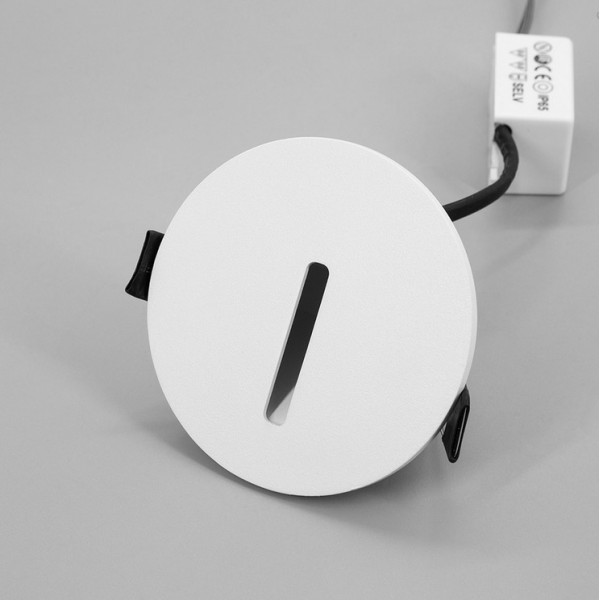

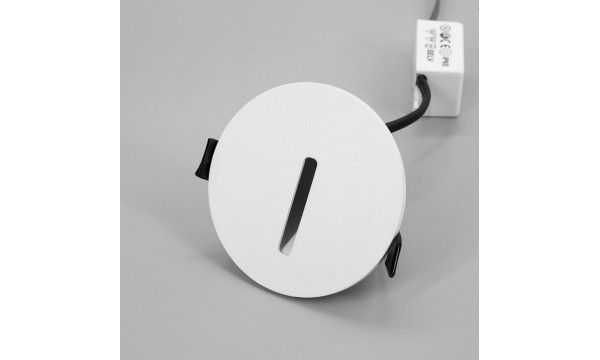

LUMINAIRES FOR STAIRCASE LIGHTING SR

Enquire Product PDF

Built-in scrubber for stair and path lighting. IP66 protection classes are suitable for outdoor use. The body is available in several colors.

Light characteristics

Lighting Effectiveness: 60 lm/W
Temperature (CCT): 2700K-4000K
Color Rendering Index (CRI): RA≥80; RA≥95
Unified Glare Rating (UGR): <19
Standard deviation of color matching (MacAdam) SDCM: 3

Common parameters

IP Rating: IP66
IK rating: IK10
Housing: Aluminum
Housing colour: White; Black; Grey
Warranty: 5 years
Certificates: CE; ROHS

Electrical data

Voltage: 85-265V AC

Operating conditions

Life time (LM80): 50000h

Model	Power	Light flux	Size (mm)
SLR03WAW6-V	3W	180 lm	φ83x45
SLS03WAW6-V	3W	180 lm	83x83x45
