Pathway light CYL-02

NEW Pathway light CYL-02

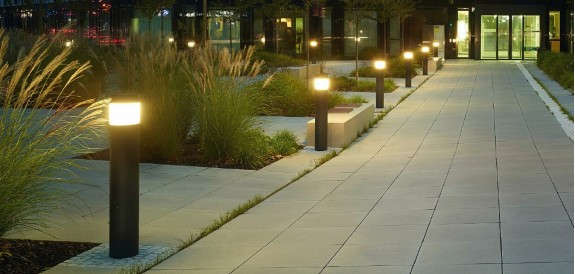

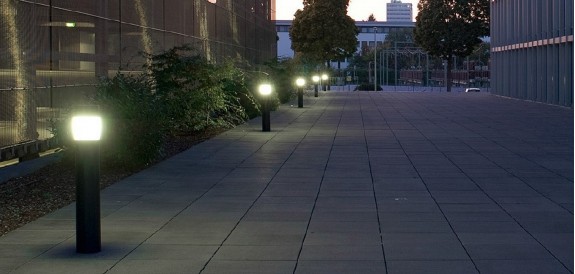

Compact outdoor luminaire with a modern design. Emits a soft, even light, perfect for illuminating paths, courtyards and garden areas. The sturdy housing ensures reliable operation in outdoor conditions. Possibility to change the upper part as needed (different designs). Available heights from 380mm to 1200mm.

Light characteristics
  • Lighting Effectiveness: 100 lm/W; 120 lm/W
  • Beam Angle: 180°
  • Temperature (CCT): 3000K-6000K
  • Color Rendering Index (CRI): RA≥70; RA≥80
  • LED chip type: 2835; 3030; 5050
  • LED chip brand: LUMILEDS
Common parameters
  • IP Rating: IP65
  • IK rating: IK09
  • Housing: Aliuminis; PC; PMMA
  • Warranty: 5 years
  • Certificates: CE; ROHS
Electrical data
  • Voltage: 110-240V AC
  • Electrical Safety Class: I; II
Operating conditions
  • Life time (LM80): 35000 h
  • Ambient Temperature: -25°C to +40°C
Model Power Light flux Size (mm)
PGR-1210NB-Y 10W 1200 lm Φ160x1200
PGR-1220NB-Y 20W 2400 lm Φ160x1200
PGR-1225NB-Y 25W 3000 lm Φ160x1200
PGR-1230NB-Y 30W 3600 lm Φ160x1200
