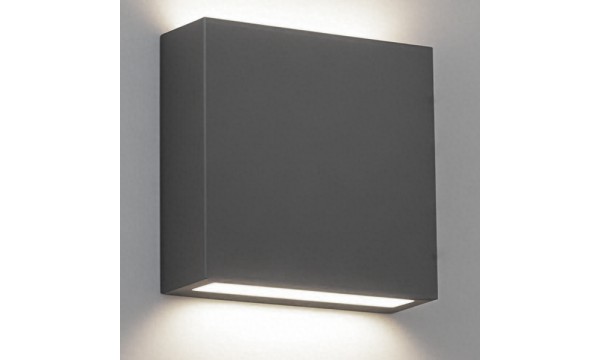

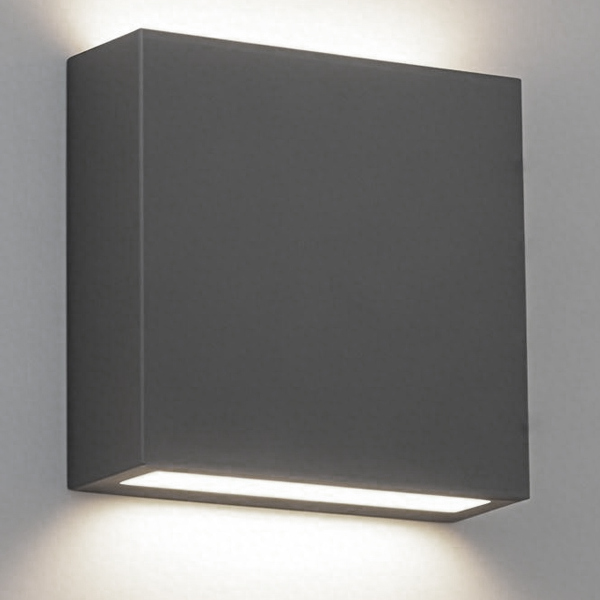

Wall Mounted "WALL-1" IP65

Wall Mounted "WALL-1" IP65

Widely used in Factory, Workshop, Warehouse, Logistics Center Exhibition Hall, Gymnasium, Shipyards, Mining, Gas Station, Supermarket, Other Places

Light characteristics
  • Beam Angle: 70°; 80°; 160°
  • Temperature (CCT): 3000K; 4000K;
  • Color Rendering Index (CRI): RA≥80
  • LED chip type: 3030
  • LED chip brand: PHILIPS
Common parameters
  • IP Rating: IP65
  • IK rating: IK06
  • Housing: Aluminum
  • Housing colour: White; Black; Grey
  • Warranty: 3 years, 5 years
  • Certificates: CE; ROHS
Electrical data
  • Voltage: 220-240V AC
  • Power Factor (PF): 0,9
Operating conditions
  • Life time (LM80): 60000h
  • Dimmable: 1-10V
Model Power Light flux Size (mm)
WW-12XX57X-K 12W 960 lm 122x122x57
WW-15XX58X-K 15W 1200 lm 208x104x53
WW-20XX5-X-K 20W 1800 lm 180x180x58
WW-30XX5-X-K 30W (2X15) 2000 lm 207x107x43
