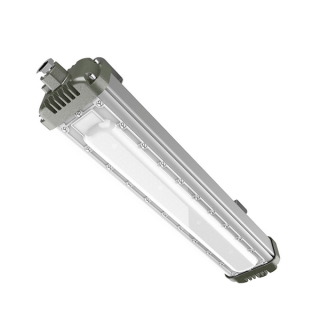

Explosion-proof luminaire (IP66) X

The IP66 protection class luminaire is intended for explosive environments. It has high light efficiency and is designed for high ceilings. The lamp can be installed both from above and from the side with the appropriate nozzle.

Light characteristics
  • Lighting Effectiveness: ≥120 lm/W
  • Beam Angle: 120°
  • Temperature (CCT): 2700K-3000K; 4000K-5000K; 5000K-6500K
  • Color Rendering Index (CRI): RA≥80
  • LED chip brand: EPISTAR; BRIDGELUX; CREE
Common parameters
  • IP Rating: IP66
  • IK rating: IK10
  • Housing: Aluminum; Tempered Glass
  • Warranty: 3 yrs
Electrical data
  • Voltage: 85-265V AC
  • Power Factor (PF): >0.95
  • Harmonic Distortion: <15%
Operating conditions
  • Life time (LM80): ≥50,000 h
  • Ambient Temperature: -30°C to +50°C
Model Power Light flux Size (mm)
HBE-030WN6-X 30W 2700 lm ф190x120
HBE-050WN6-X 50W 4500 lm ф236x125
HBE-070WN6-X 70W 6300 lm ф295x150
HBE-100WN6-X 100W 9000 lm ф295x150
HBE-120WN6-X 120W 10800 lm ф310x140
HBE-150WN6-X 150W 13500 lm ф310x140
HBE-200WN6-X 200W 18000 lm ф350x150
HBE-250WN6-X 250W 22500 lm ф400x150
