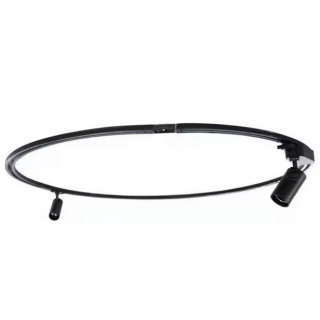

Track light H-03

Track light H-03

Track light H-03

Track light H-03

Enquire Product PDF Declaration of Conformity

Track light is perfect for additional lighting of museums, exhibition halls, trade areas, separate areas.

Light characteristics

Lighting Effectiveness: ≥110 lm/W
Beam Angle: 12°-60°
Temperature (CCT): 2700K; 3000K; 4000K; 5000K; 5700K
Color Rendering Index (CRI): RA≥90; RA≥92; RA≥95; RA≥97
LED chip brand: CITIZEN; CREE; OSRAM

Common parameters

Housing: Aluminum
Housing colour: White; Black
Warranty: 5 yrs
Certificates: CE; ROHS

Electrical data

Voltage: 220-240V AC
Power Factor (PF): >0.90
Power supply brand: TRIDONIC; OSRAM; LIFUD; PHILIPS

Operating conditions

Life time (LM80): ≥50000 h
Ambient Temperature: -20°C to +45°C
Dimmable: 0-10V; DALI; TRIAC

Model	Power	Light flux	Size (mm)	Weight (kg)
TCL-10NBZC-H	10W	1100 lm	190,5x75x179	0,995
TCL-20NBZC-H	20W	2200 lm	190,5x75x179	0,995
TCL-30NBZC-H	30W	3300 lm	190,5x75x179	0,995

Honeyconb

Wall Washer Ring

Antiglare Ring

Barndoor
