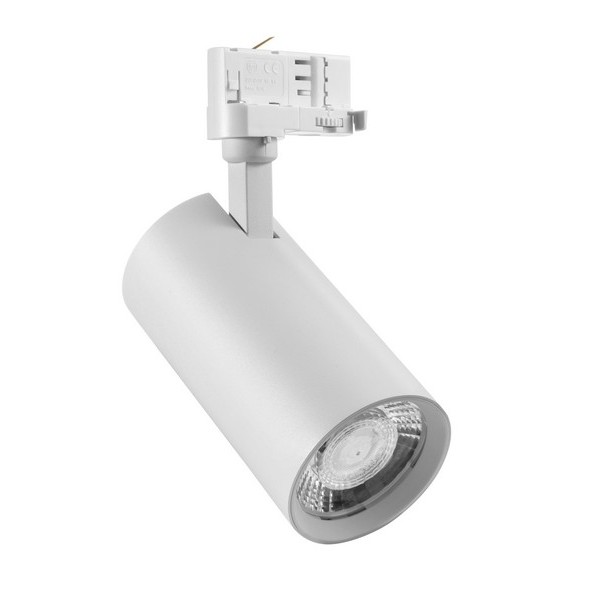

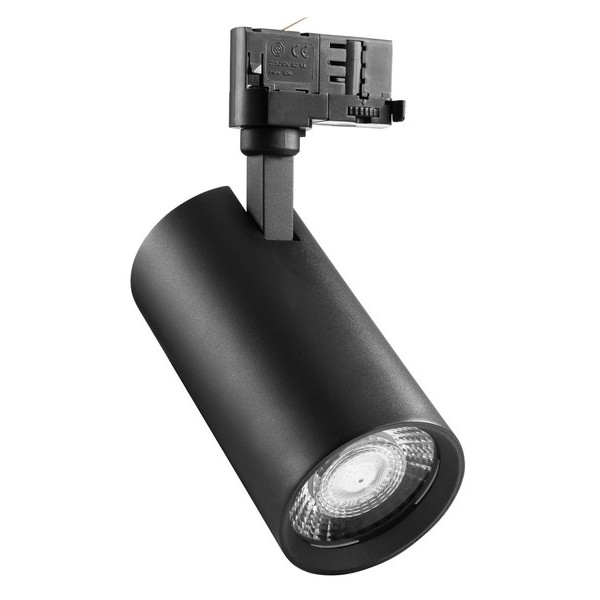

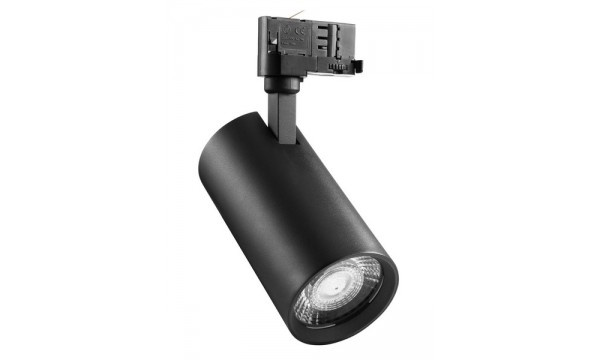

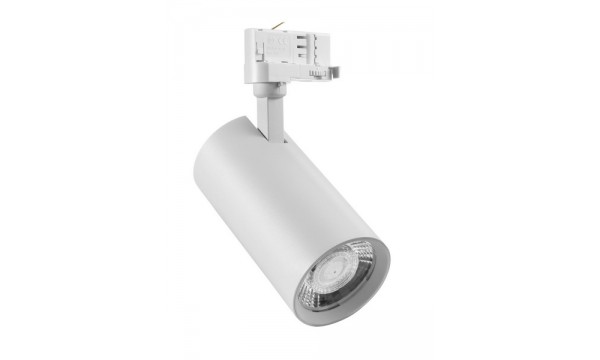

Track light CRI>90

Track light CRI>90

The accent lamp with a high CRI RA>90 is perfect for additional lighting of commercial areas, individual zones, museums, and household lighting. BRIDGELUX lamps and LIFUD power source are included. The scrubber has a three-phase connection.

Light characteristics
  • Lighting Effectiveness: 140 lm/W
  • Beam Angle: 30°; 45°
  • Temperature (CCT): 3000K-5000K
  • Color Rendering Index (CRI): RA≥90
  • Standard deviation of color matching (MacAdam) SDCM: 3
  • LED chip brand: BRIDGELUX
Common parameters
  • IP Rating: IP20
  • Housing: Aluminium
  • Housing colour: White; Black
  • Warranty: 3 yrs; 5 yrs
  • Certificates: CE; ROHS
Electrical data
  • Power Factor (PF): >0.90
  • Power supply brand: LIFUD
  • Electrical Safety Class: I; III
Operating conditions
  • Life time (LM80): ≥50000 h
  • Ambient Temperature: -20°C to +45°C
  • Dimmable: DALI
Model Power Light flux Size (mm)
TCL-09NB3C-S 9W 1260 lm Φ55x135
TCL-11NB3C-S 11W 1540 lm Φ55x135
TCL-14NB3C-S 14W 1960 lm Φ55x165
TCL-15NB3C-S 15W 2100 lm Φ55x165
TCL-18NB3C-S 18W 2520 lm Φ55x165
TCL-20NB3C-S 20W 2800 lm Φ55x165
