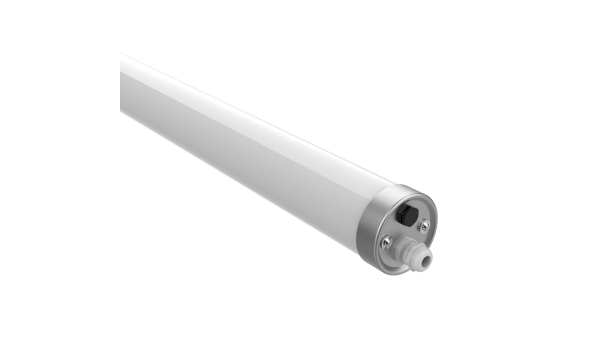

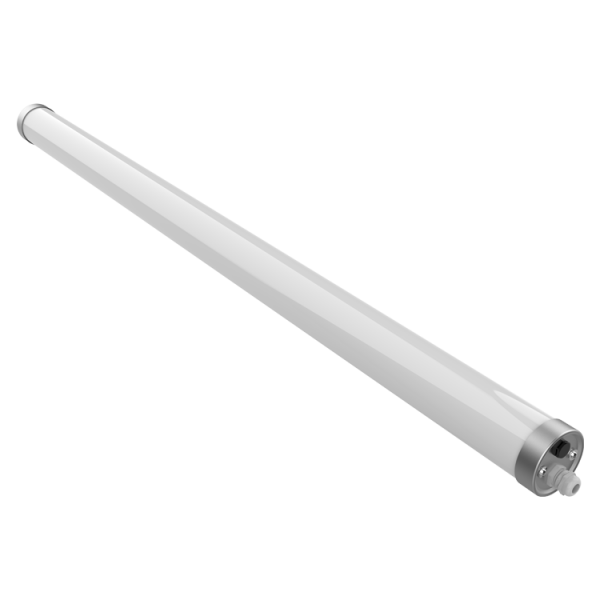

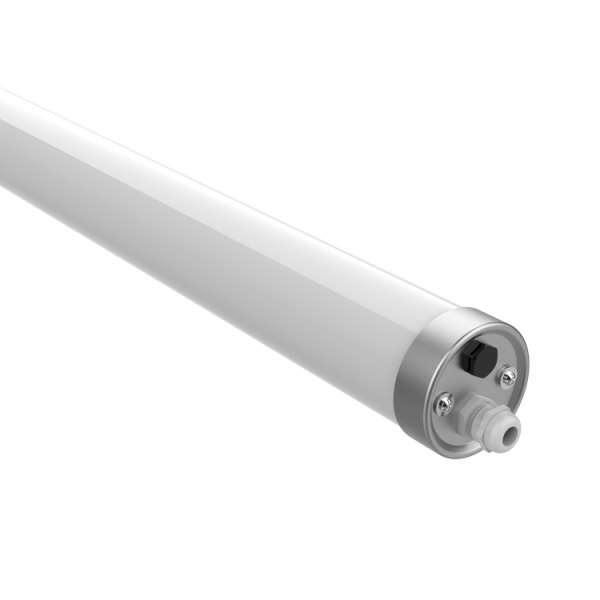

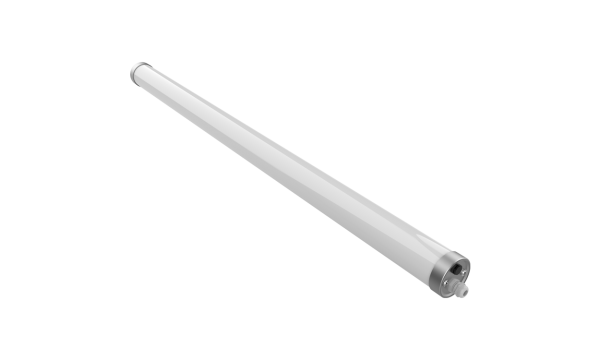

TRI-PROOF-M IP69 140 lm/W

TRI-PROOF-M IP69 140 lm/W

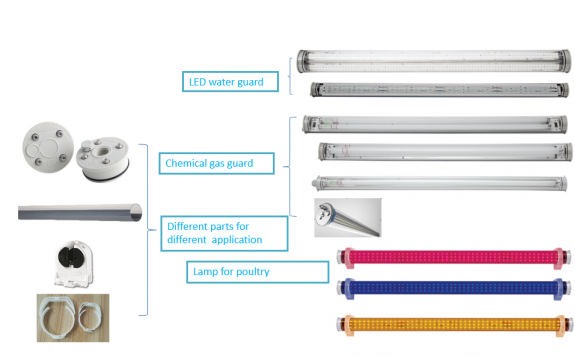

The IP69 class lamp is suitable for use in: car washes, parking lots, food processing workshops, low-temperature storage facilities, livestock and crop farms. Resistance to UV rays, corrosion, ammonia.

Light characteristics
  • Lighting Effectiveness: ≥140 lm/W
  • Beam Angle: 120°
  • Temperature (CCT): 3000K-5000K;
  • Color Rendering Index (CRI): RA≥80

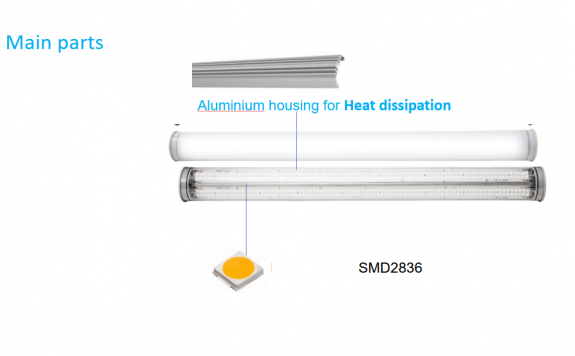

  • LED chip type: 2836
Common parameters

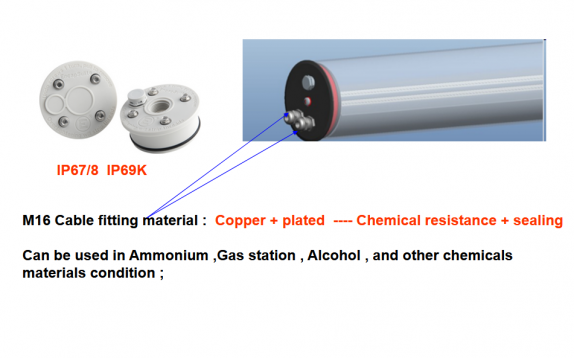

  • IP Rating: IP69
  • IK rating: IK09

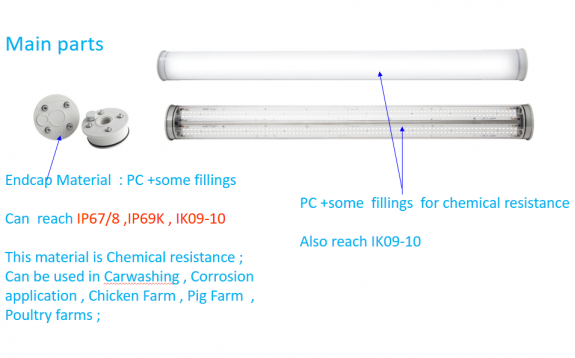

  • Housing: Aluminium
  • Warranty: 5 yrs
  • Certificates: CE; ROHS
Electrical data
  • Voltage: 100-277V AC
  • Power Factor (PF): >0.90
  • Electrical Safety Class: I
Operating conditions
  • Life time (LM80): ≥50,000 h
  • Ambient Temperature: -20°C to +45°C
  • Dimmable: DALI; ZigBee

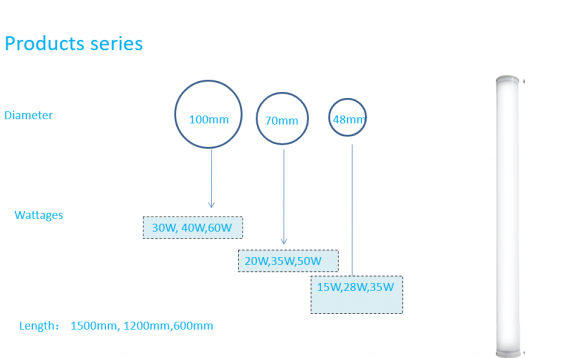

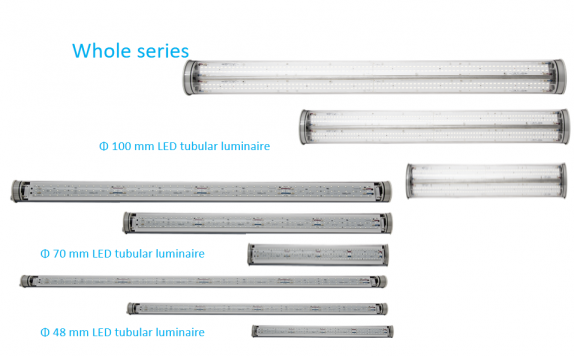

Model Power Light flux Size (mm) Photometry
TP-0612N-4-M 12W 1680 lm ф48x600 TP-0612N-4-M.IES
TP-0620N-4-M 20W 2800 lm ф70x600
TP-0624N-4-M 24W 3360 lm ф100x600
TP-1224N-4-M 24W 3360 lm ф48x1200 TP-1224N-4-M.IES
TP-1532N-4-M 32W 4480 lm ф48x1500 TP-1532N-4-M.IES
TP-1235N-4-M 35W 4900 lm ф70x1200
TP-1545N-4-M 45W 6300 lm ф70x1500
TP-1250N3-XM 50W 7000 lm ф100x1200
TP-1580N3-XM 80W 11200 lm ф100x1500
