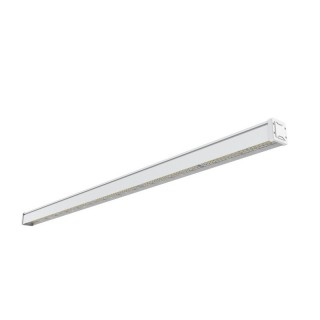

HBT L19 NSF

HBT L19 NSF

The solution is suitable for use in the food industry. Has an NSF certificate. It has various light scattering angles and high resistance to moisture and mechanical effects (IP66 and IK06).

Light characteristics
  • Lighting Effectiveness: ≥135 lm/W
  • Beam Angle: 40°x100°; 60°x90°; 70°x100°; DA25°; 90°x100°; 120°
  • Temperature (CCT): 3000K; 4000K; 5000K
  • Color Rendering Index (CRI): RA≥80
  • LED chip type: SMD2835
Common parameters
  • IP Rating: IP66
  • IK rating: IK06
  • Housing: Aluminum; PMMA
  • Warranty: 5 yrs
  • Certificates: CE; ROHS
Electrical data
  • Voltage: 100-240V AC
  • Power Factor (PF): >0,95
  • Power supply brand: INVENTRONICS
Operating conditions
  • Life time (LM80): ≥50000 h
  • Ambient Temperature: -30°C to +45°C
  • Dimmable: 0-10V
  • Overvoltage protection: 6kV; 10kV
Model Power Light flux Size (mm)
HBT-070D--4A 70W 9450 lm 629x86x114
HBT-120D--4A 120W 16200 lm 1209x86x114
