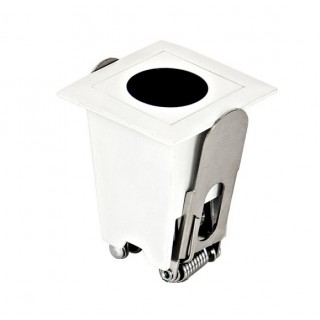

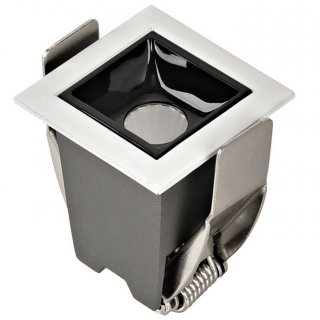

Downlight 120lm/W IP65

NEW Downlight 120lm/W IP65

Accent lamp (Downlight) with a low glare factor. A good solution for lighting commercial premises, shopping centers, hotels, offices or auxiliary premises.  Efficiency 120 Lm/W. Can be equipped with dimmable power sources 0-10V, Triac, DALI. Protection factor IP65. Various light scattering angles are available. Various color reflectors are available.

Light characteristics
  • Lighting Effectiveness: 120 lm/w
  • Beam Angle: 15°; 24°; 38°; 60°
  • Temperature (CCT): 3000K-6500K
  • Color Rendering Index (CRI): Ra≥90
  • Standard deviation of color matching (MacAdam) SDCM: <3
  • LED chip type: COB
Common parameters
  • IP Rating: IP65
  • IK rating: IK06
  • Housing: Aluminium; PC
  • Housing form: Round; Square
  • Housing colour: White; Black
  • Warranty: 5 years
Electrical data
  • Voltage: AC 200-240V
  • Power Factor (PF): >0.9
  • Harmonic Distortion: <15% (THD)
  • Power supply brand: EAGLERISE
  • Electrical Safety Class: II
  • Current in rush: 600mA
Operating conditions
  • Life time (LM80): 50000h
  • Light Output Decay: 0.01
  • Ambient Temperature: -25°C to +55°C
  • Dimmable: 0-10V; DALI; TRIAC
Model Power Light flux Cut size (mm) Size (mm)
DCR-09NW62-W 9W 1080 lm Φ75 Φ86x54
DCR-12NW62-W 12W 1440 lm Φ75 Φ86x54
DCR-15NW62-W 15W 1800 lm Φ75 Φ86x54
DCR-18NW62-W 18W 2160 lm Φ90 Φ100x64
DCR-20NW62-W 20W 2400 lm Φ125 Φ136x83
DCR-24NW62-W 24W 2880 lm Φ145 Φ158x96
DCR-28NW62-W 28W 3360 lm Φ165 Φ180x109
DCR-32NW62-W 32W 3840 lm Φ165 Φ180x109
DCR-42NW62-W 42W 5040 lm Φ165 Φ180x109
DCS-42NW62-W 12W 1440 lm 90x90 100x100x64
DCS-15NW62-W 15W 1800 lm 90x90 100x100x64
DCS-18NW62-W 18W 2160 lm 90x90 100x100x64
DCS-20NW62-W 20W 2400 lm 125x125 136x136x83
DCS-24NW62-W 24W 2880 lm 145x145 158x158x96
DCS-28NW62-W 28W 3360 lm 165x165 180x180x109
DCS-32NW62-W 32W 3840 lm 165x165 180x180x109
DCS-42NW62-W 42W 5040 lm 165x165 180x180x109
