LED DOWNLIGHT NL

LED DOWNLIGHT NL

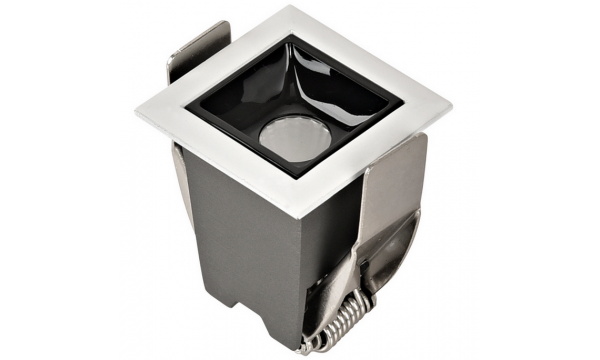

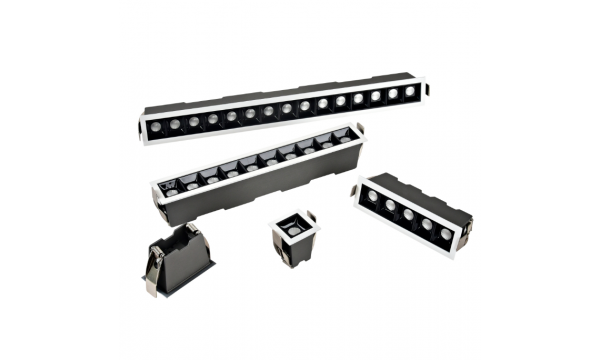

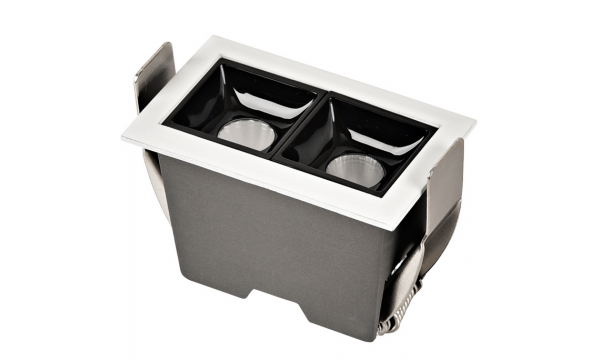

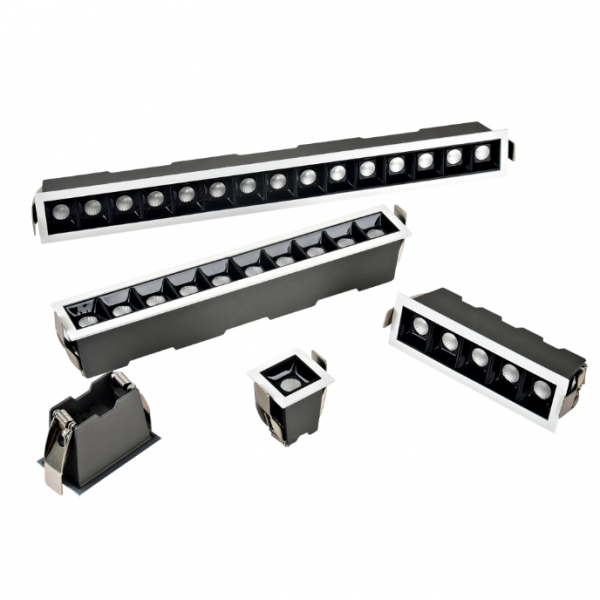

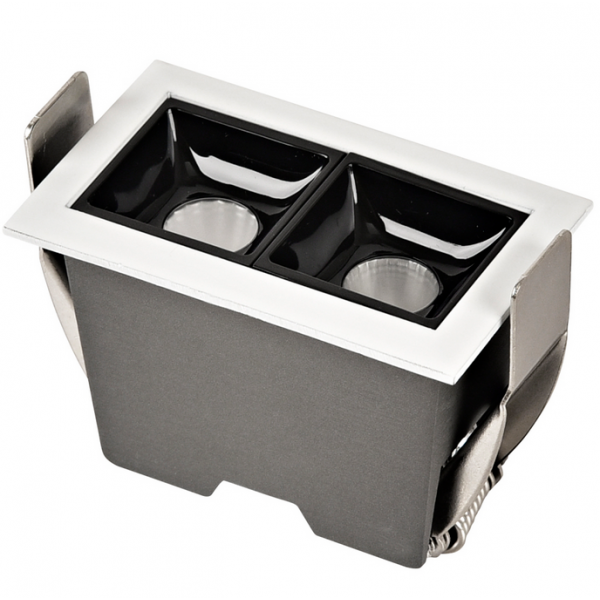

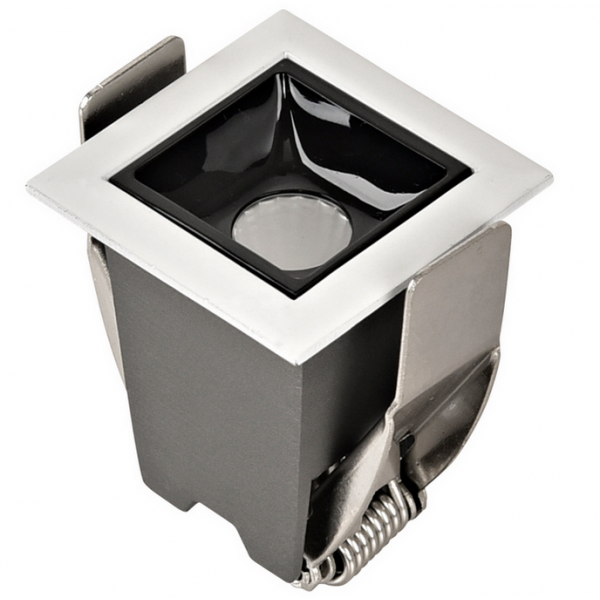

Recessed accent square (COB) lamps are intended for additional lighting of commercial areas, salons, individual places. There can be several different lighting angles. There is a possibility to choose the color of the body: white, black.

Light characteristics
  • Lighting Effectiveness: ≥100 lm/W
  • Beam Angle: 15°; 30°; 45°
  • Temperature (CCT): 3000K-6000K
  • Color Rendering Index (CRI): RA≥80; RA≥90; RA≥97
  • Unified Glare Rating (UGR): <19
  • LED chip type: SMD3030
Common parameters
  • IP Rating: IP20
  • IK rating: IK07
  • Housing: Aluminum
  • Housing colour: White; Black
  • Warranty: 5yrs
  • Certificates: CE; ROHS
Electrical data
  • Voltage: 200-240V AC
  • Power Factor (PF): >0,90
  • Power supply brand: LIFUD; TRIDONIC; OSRAM; BOKE; PHILIPS
Operating conditions
  • Life time (LM80): ≥50000 h
  • Dimmable: 0-10V; DALI; TRIAC

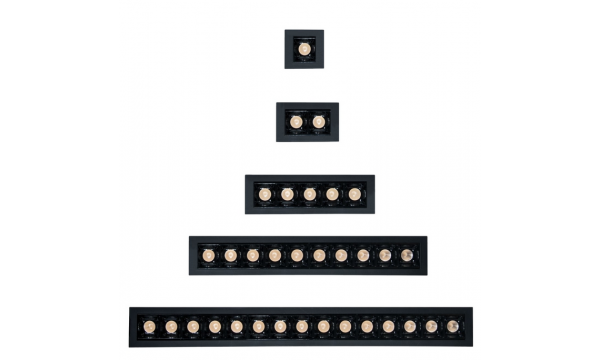

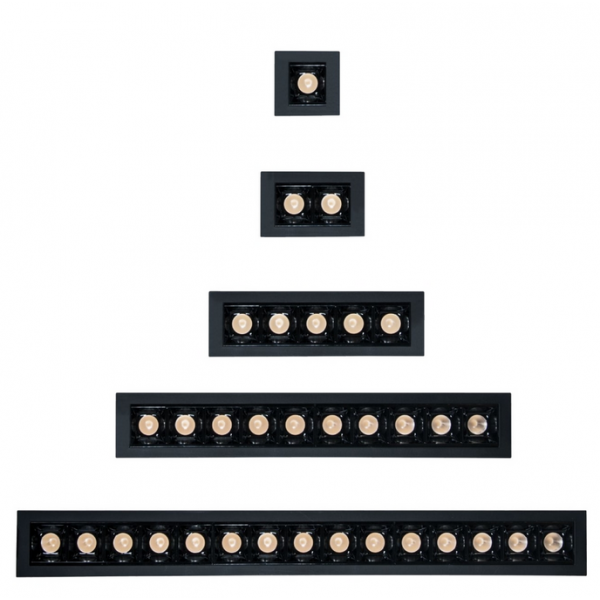

Model Power Light flux Size (mm)
DCL-02NW3-CT 1x2W 200 lm 45x45x50
DCL-04NW3-CT 2x2W 400 lm 75x45x50
DCL-10NW3-CT 5x2W 1000 lm 147x45x50
DCL-20NW3-CT 10x2W 2000 lm 279x45x50
DCL-30NW3-CT 15x2W 3000 lm 411x45x50
