LED DOWNLIGHT SMN

Enquire Product PDF

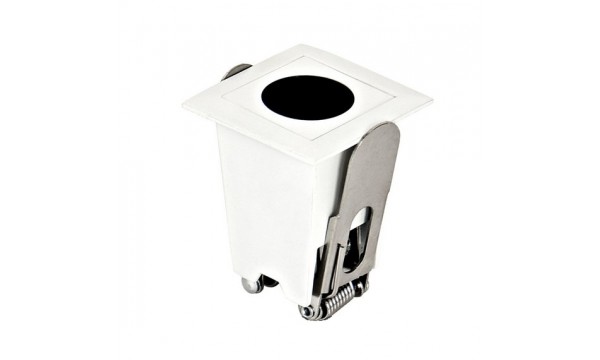

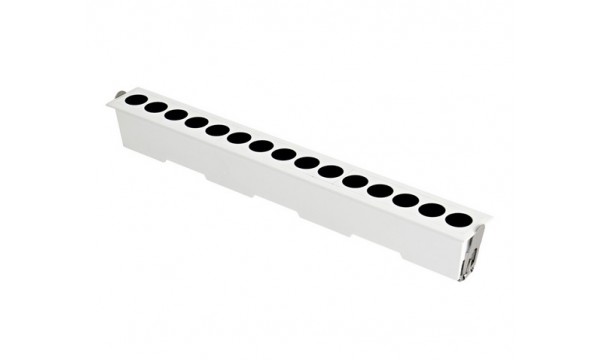

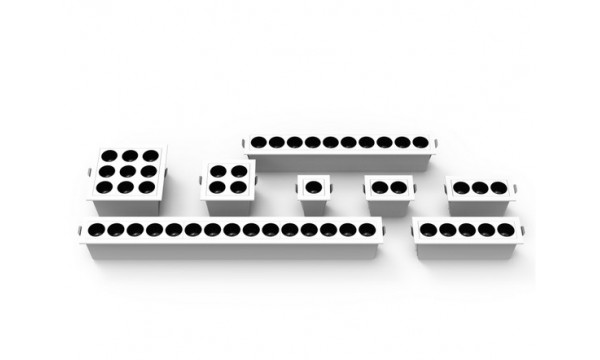

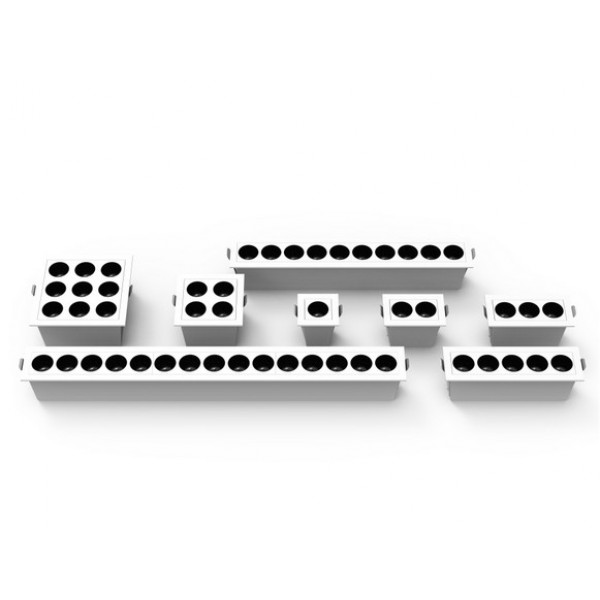

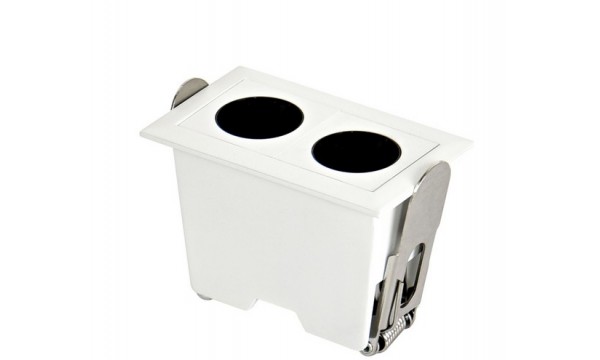

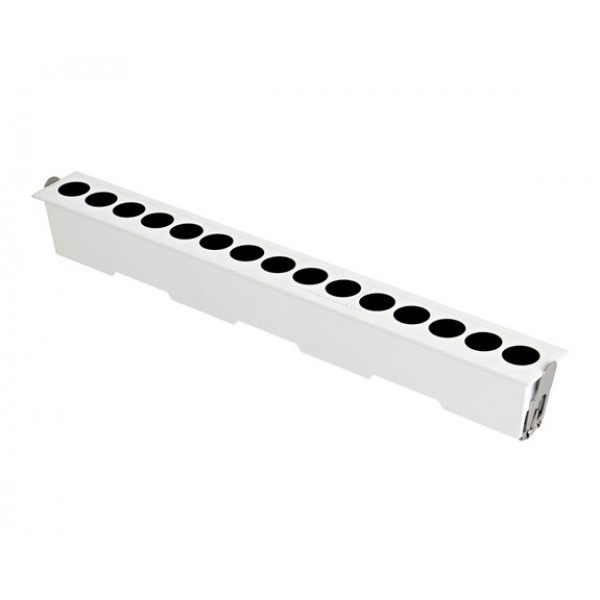

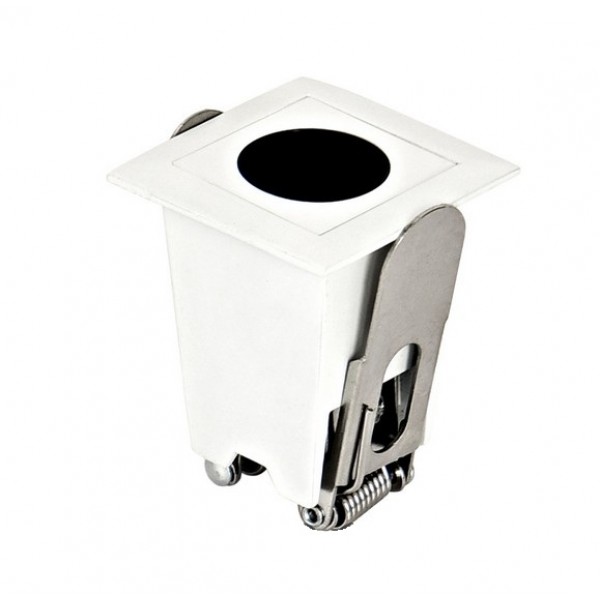

Recessed accent square (COB) lamps are intended for additional lighting of commercial areas, salons, individual places. There can be several different lighting angles. There is a possibility to choose the color of the body: white, black.

Light characteristics

Lighting Effectiveness: ≥100 lm/W
Beam Angle: 15°; 24°; 38°
Temperature (CCT): 3000K; 4000K; 5000K; 6000K
Color Rendering Index (CRI): RA≥80; RA≥90; RA≥97
Unified Glare Rating (UGR): <19
LED chip type: SMD3030

Common parameters

IP Rating: IP20
IK rating: IK07
Housing: Aluminum
Housing colour: White; Black
Warranty: 3 yrs; 5yrs
Certificates: CE; ROHS

Electrical data

Voltage: 200-240V AC
Power Factor (PF): >0,90
Power supply brand: LIFUD; TRIDONIC; OSRAM; BOKE; PHILIPS

Operating conditions

Life time (LM80): ≥50000 h
Dimmable: 0-10V; DALI; TRIAC

Model	Power	Light flux	Size (mm)
DCL-02NW-3-S	1x2W	200 lm	46x46x52
DCL-04NW-3-S	2x2W	400 lm	69x46x52
DCL-06NW-3-S	3x2W	600 lm	96x46x52
DCL-08NW-3-S	4x2W	800 lm	76x76x52
DCL-10NW-3-S	5x2W	1000 lm	148x46x52
DCL-18NW-3-S	9x2W	1800 lm	106x106x52
DCL-20NW-3-S	10x2W	2000 lm	285x46x52
DCL-30NW-3-S	15x2W	3000 lm	417x56x52
