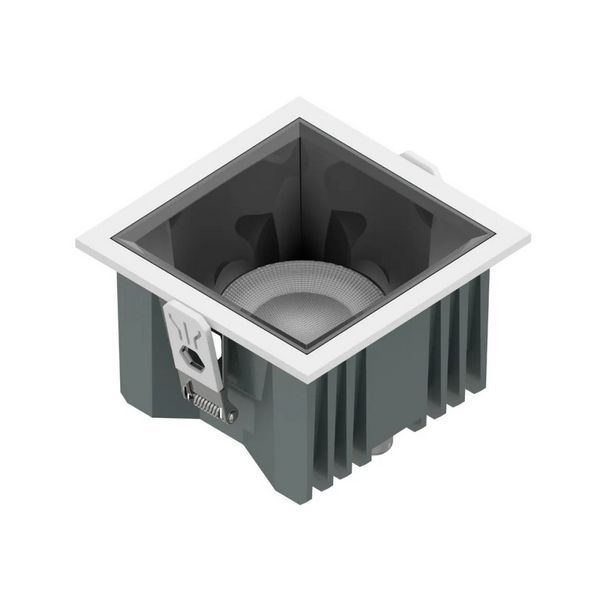

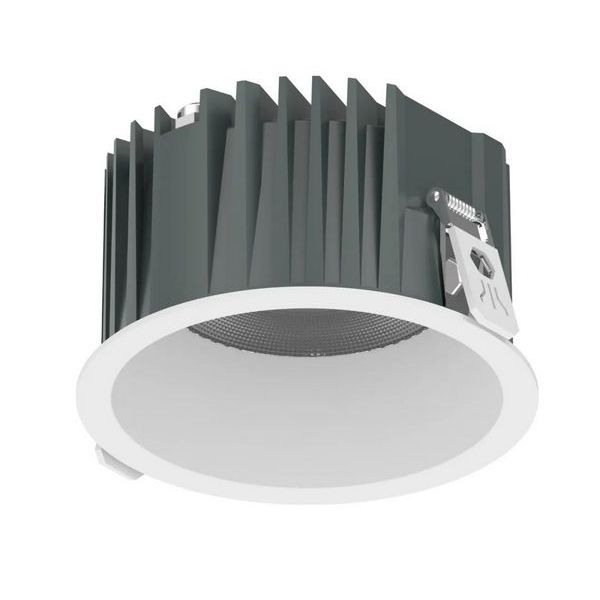

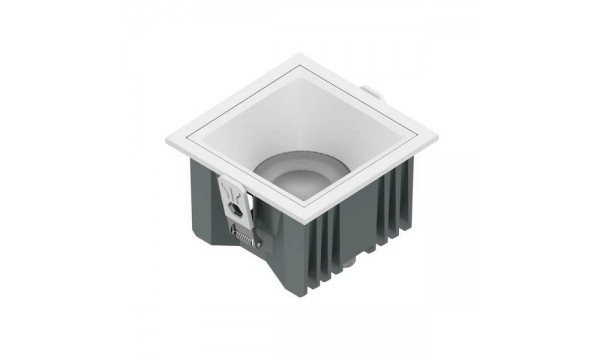

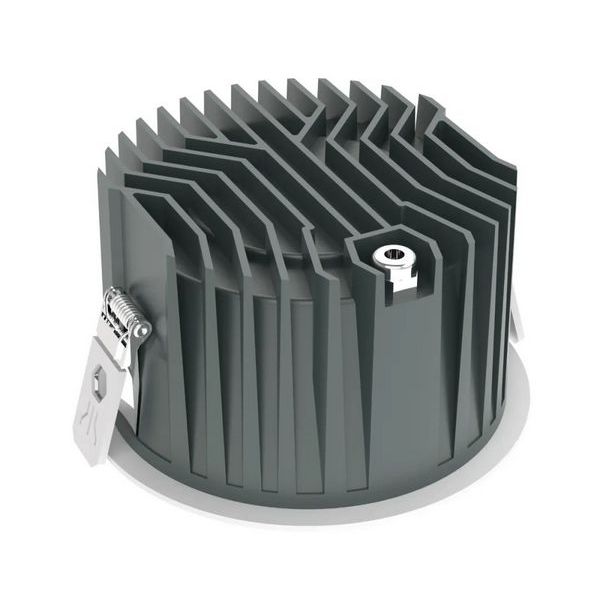

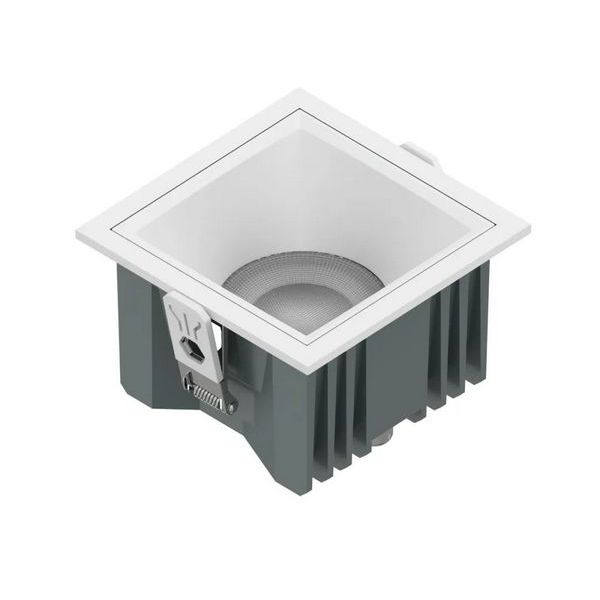

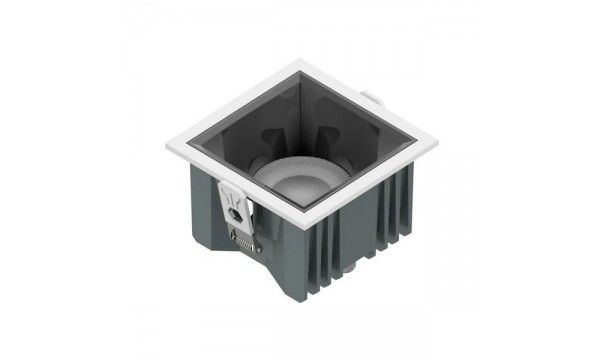

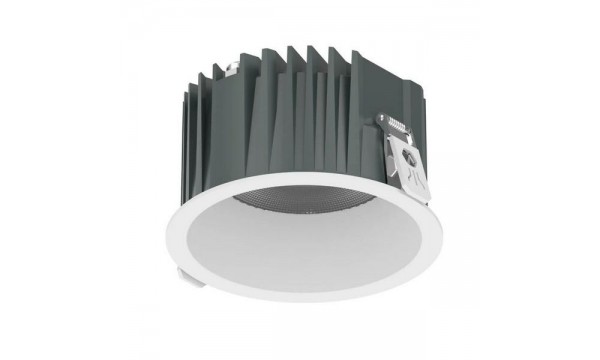

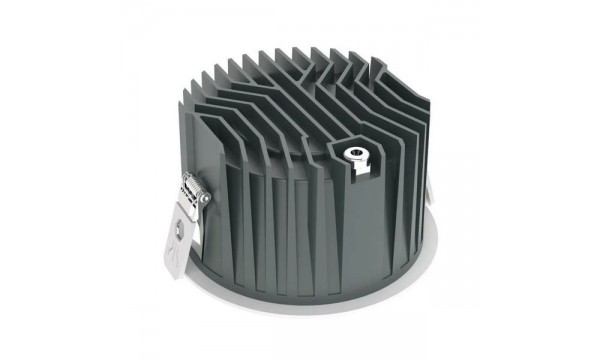

Downlight IP65,UGR<19 130 lm/W

Downlight IP65,UGR<19 130 lm/W

Accent lamp (Downlight) with a low glare factor. A good solution for lighting commercial premises, shopping centers, hotels, offices or auxiliary premises.  Efficiency 130 Lm/W. Can be equipped with dimmable power sources 0-10V, Triac, DALI. Protection factor IP65.

Light characteristics
  • Lighting Effectiveness: 130 lm/W
  • Beam Angle: 60°
  • Temperature (CCT): 3000K-6500K
  • Color Rendering Index (CRI): Ra≥90
  • Unified Glare Rating (UGR): <19
  • Standard deviation of color matching (MacAdam) SDCM: 3
Common parameters
  • IP Rating: IP65
  • Housing: Aliuminum; PC
  • Housing colour: White
  • Warranty: 5 years
  • Certificates: CE; ROHS
Electrical data
  • Voltage: AC 200-240V
  • Power Factor (PF): 0,95
  • Power supply brand: BOKE
  • Power Supply Efficiency: 0.89
  • Power supply IP class: IP65
  • Voltage after the power supply: 40V DC
Operating conditions
  • Life time (LM80): 50000h
  • Ambient Temperature: -20°C to +50°C
  • Dimmable: 0-10V; DALI; TRIAC
Model Power Light flux Cut size (mm) Size (mm)
DSR-10NW53CB 10W 1300 lm Φ75 Φ83x65
DSS-10NW53CB 10W 1300 lm 75x75 90x90x60
DSR-15NW53CB 15W 1950 lm Φ95 Φ103x70
DSR-15NW53CB 15W 1950 lm 95x95 110x110x70
DSR-20NW53CB 20W 2600 lm Φ95 Φ103x70
DSS-20NW53CB 20W 2600 lm 95x95 110x110x70
DSR-30NW53CB 30W 3900 lm Φ125 Φ132x75
DSS-30NW53CB 30W 3900 lm 125x125 145x145x75
DSR-40NW53CB 40W 5200 lm Φ145 Φ160x80
DSS-40NW53CB 40W 5200 lm 145x145 165x165x85
DSR-50NW53CB 50W 6500 lm Φ165 Φ180x85
DSS-50NW53CB 50W 6500 lm 165x165 185x185x92
