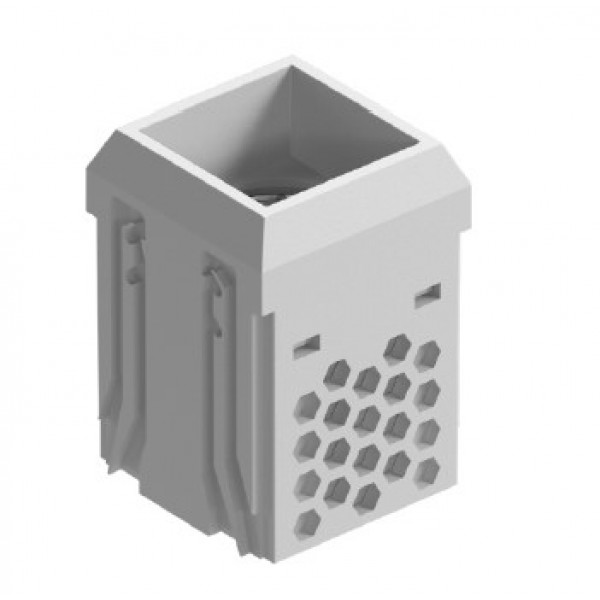

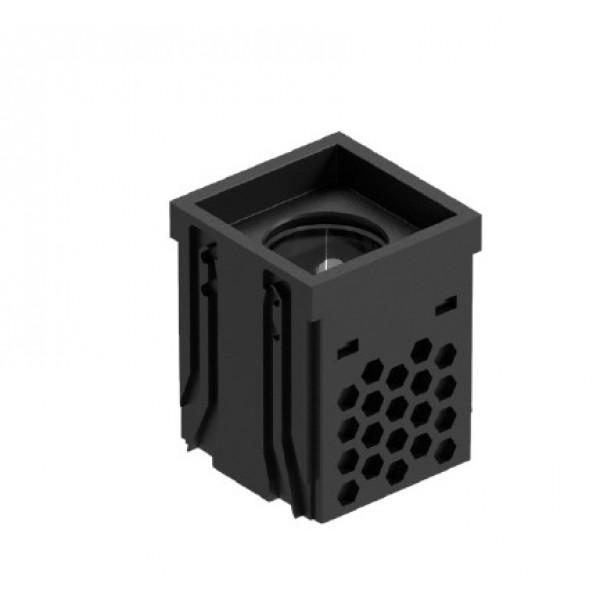

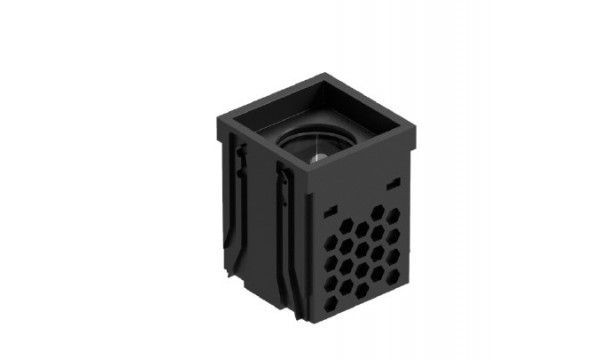

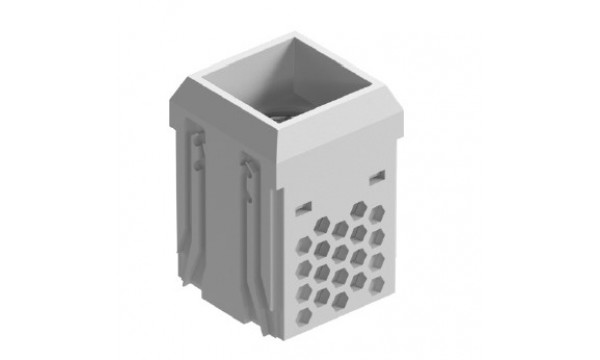

Modular accent light

Modular accent light

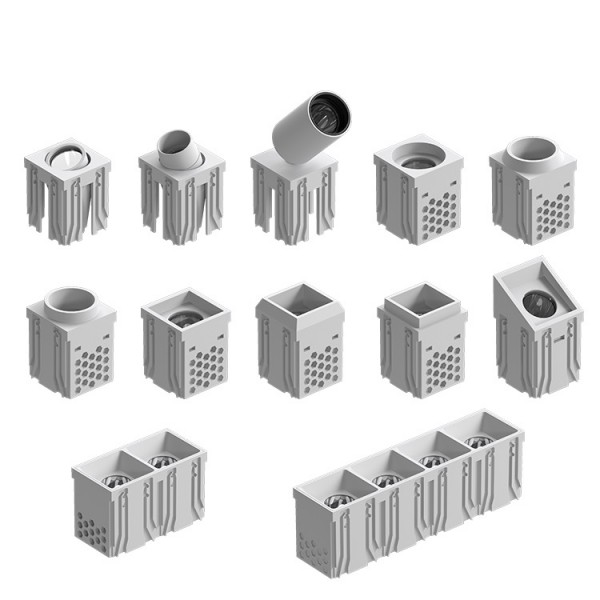

A family of accent lights with a modular design that allows you to implement a wide variety of your lighting ideas. The system is easy to configure and change. Flexible choice of modules and combinations. Available in black, white or bronze as standard, other colors according to RAL code can be produced upon request.

Light characteristics
  • Lighting Effectiveness: 100 lm/W
  • Beam Angle: 26°; 36°; 45°; 50°
  • Temperature (CCT): 3000K-6500K
  • Color Rendering Index (CRI): Ra≥80; Ra≥90
  • Unified Glare Rating (UGR): <19
  • Standard deviation of color matching (MacAdam) SDCM: <3
Common parameters
  • IP Rating: IP40; IP54
  • IK rating: IK04
  • Housing: Aluminium
  • Housing colour: Black; White; Bronse
  • Warranty: 5 years
  • Certificates: CE; ROHS
Electrical data
  • Voltage: AC 200-240V
  • Power Factor (PF): >0.9
  • Harmonic Distortion: <15% @230V(THD)
  • Power supply brand: LIFUD; TRIDONIC
Operating conditions
  • Life time (LM80): 50000 h
  • Light Output Decay: 0.08
  • Ambient Temperature: -20°C to +40°C
  • Dimmable: 0-10V; DALI; TRIAC
Model Power Light flux Size (mm)
DCS-05NW5-CT 5W 500 lm 44x44x55

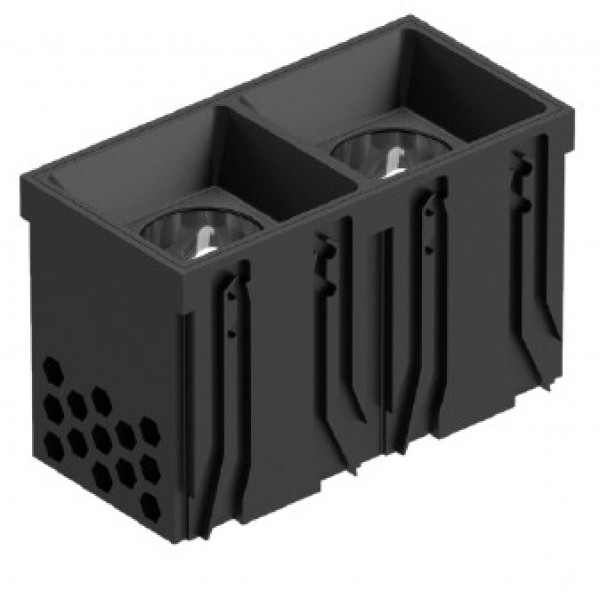

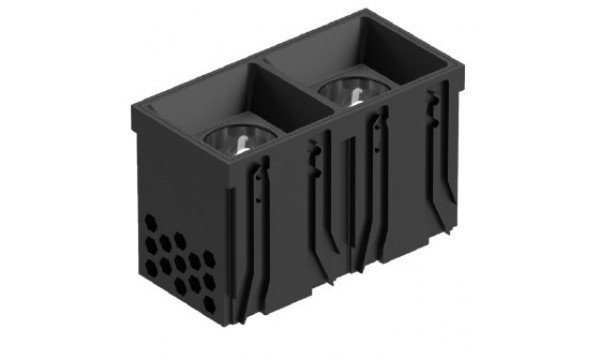

DCS-10NW5-CT 2x5W 1000 lm 89x44x55
DCS-20NW5-CT 4X5W 2000 lm 179x44x55
