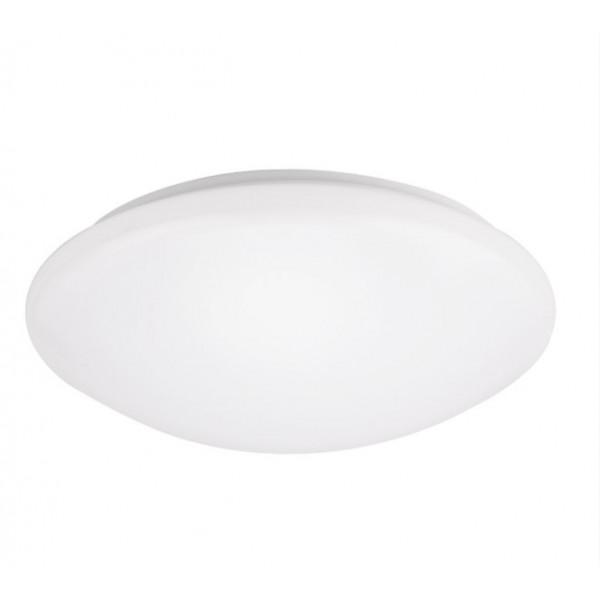

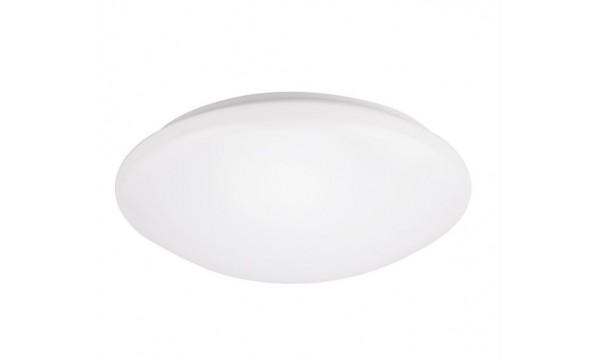

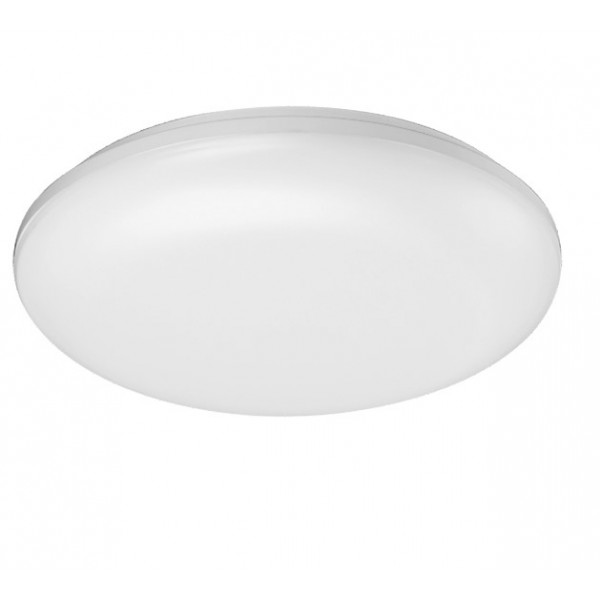

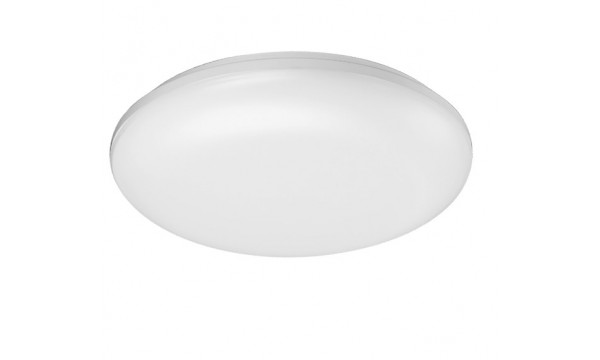

Surface Luminaire IP65 IK10 E

In Stock Surface Luminaire IP65 IK10 E

The IP65 IK10 class lamp is suitable for use in passage and entrance areas, staircases, corridors. Can be equipped with MW sensor, or an emergency module.

Light characteristics
  • Lighting Effectiveness: 100 lm/W
  • Beam Angle: 120°
  • Temperature (CCT): 3000K-6000K
  • Color Rendering Index (CRI): RA≥80
  • LED chip type: 2835
  • LED chip brand: EPISTAR
Common parameters
  • IP Rating: IP65
  • IK rating: IK10
  • Housing: PC
  • Housing colour: White
  • Warranty: 5 yrs
  • Certificates: CE; ROHS
Electrical data
  • Voltage: 180-240V AC
  • Power Factor (PF): >0,9
  • Electrical Safety Class: II
Operating conditions
  • Life time (LM80): ≥40000 h
  • Ambient Temperature: -20°C to +45°C
  • Emergency modul operation time: 3h
Model In Stock Power Light flux Size (mm) Photometry
CL-22KPW5-E 22W (12W; 15W; 18W) 2200 lm Φ320x78 CL-22KPW5-E.rar
