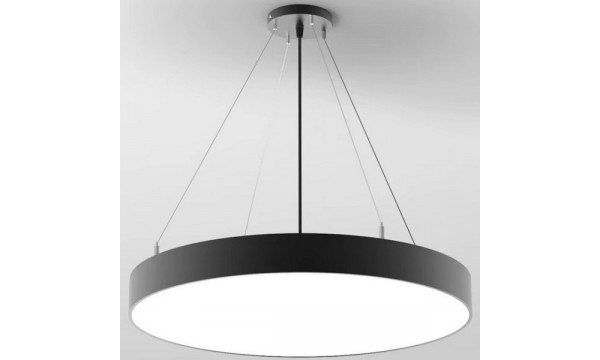

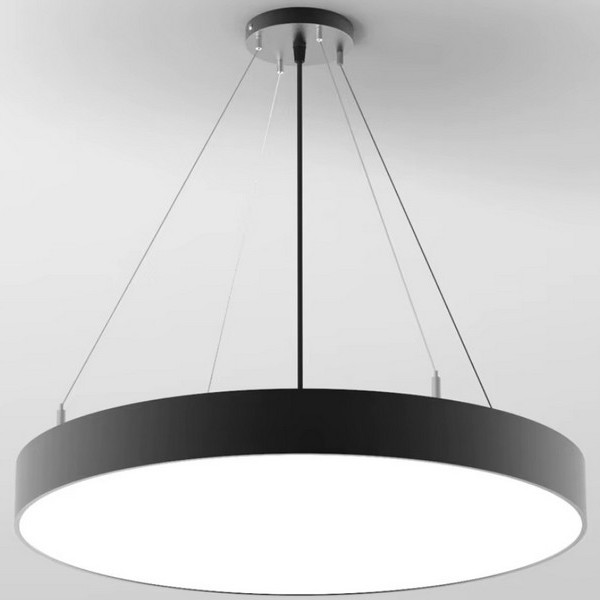

WIDE SURFACE LAMP

WIDE SURFACE LAMP
It is perfect for interior lighting in households, waiting rooms of offices and institutions, common commercial spaces. Both surface and suspended installation methods are available. Light distribution - direct (downward).
Light characteristics
  • Lighting Effectiveness: 110 lm/W; 130 lm/W; 150 lm/W
  • Beam Angle: 120°
  • Temperature (CCT): 3000K-6500K; RGBW
  • Color Rendering Index (CRI): Ra≥80; Ra≥90
  • Unified Glare Rating (UGR): <22; <19
  • Standard deviation of color matching (MacAdam) SDCM: 3
Common parameters
  • IP Rating: IP40; IP65
  • IK rating: IK04; IK06
  • Housing: Aluminium; PC (PMMA)
  • Housing form: Round; Square
  • Housing colour: Black; White
  • Warranty: 5 years
Electrical data
  • Voltage: AC 180-240V
  • Power Factor (PF): >0,9
  • Power supply brand: TRIDONIC; LIFUD; BOKE
  • Electrical Safety Class: I; II
Operating conditions
  • Life time (LM80): 50000h; 80000h
  • Ambient Temperature: 0°C to +40°C
  • Dimmable: 0-10V; DALI
Model Power Light flux Size (mm)
CDR-3522NB-E 22W 2200 lm Ø350x100
CDR-2524NB-E 24W 3600 lm Ø250x65
CDR-3525NB-E 25W 2500 lm Ø350x100
CDS-4525NB-E 25W 2500 lm 450x450x100
CDR-3030NB-E 30W 4500 lm Ø300x65
CDR-4535NB-E 35W 3500 lm Ø450x100
CDS-4535NB-E 35W 3500 lm 450x450x100
CDR-4535NB5E 35W 5250 lm Ø450x100
CDS-4540NB-E 40W 4000 lm 450x450x100
CDR-4042NB5E 42W 6300 lm Ø400x65
CDR-4545NB-E 45W 4500 lm Ø450x100
CDS-4545NB-E 45W 4500 lm 450x450x100
CDR-4548NB5E 48W 7200 lm Ø450x65
CDR-5055NB5E 55W 8250 lm Ø500x65
CDR-4560NB-E 60W 6000 lm Ø450x180
CDS-4560NB-E 60W 6000 lm 450x450x100
CDR-6060NB5E 60W 9000 lm Ø600x65
CDR-7065NB5E 65W 9750 lm Ø700x65
CDR-8072NB5E 72W 10800 lm Ø800x65
CDR-9084NB5E 84W 12600 lm Ø900x65
CDR-0196NB5E 96W 14400 lm Ø1000x65
CDR-1111NB5E 110W 16500 lm Ø1100x65
CDR-1212NB5E 120W 18000 lm Ø1200x65
