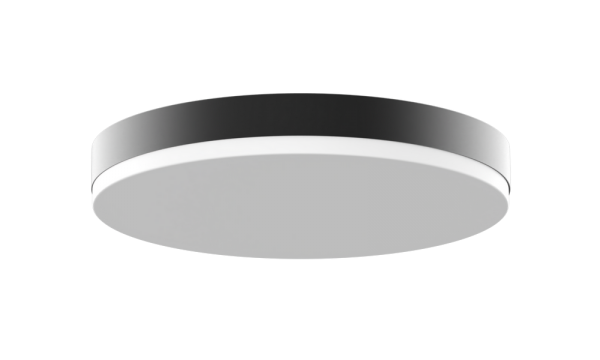

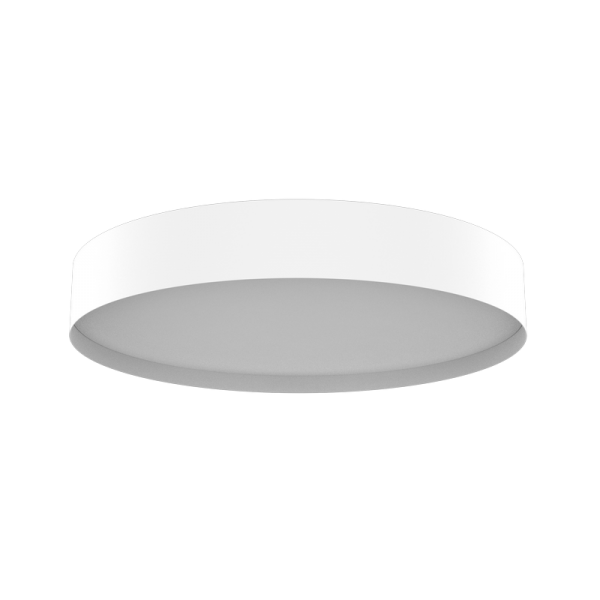

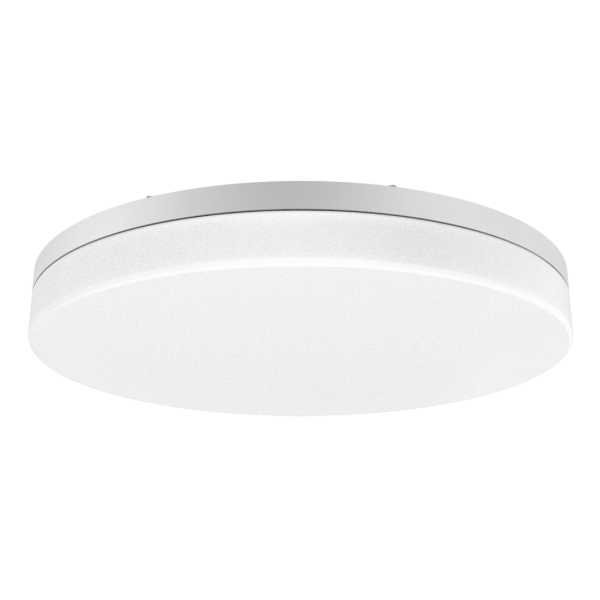

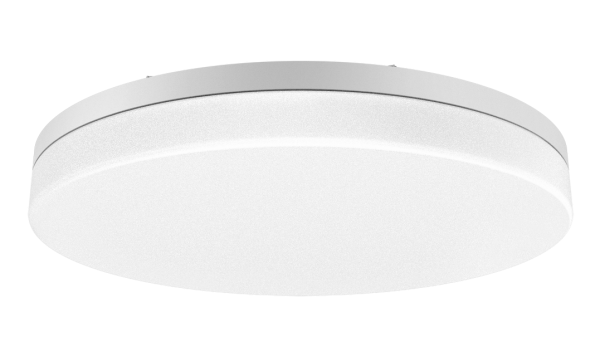

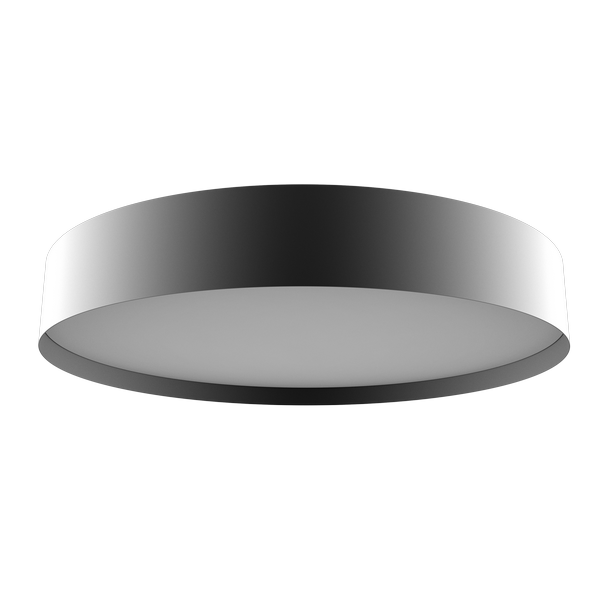

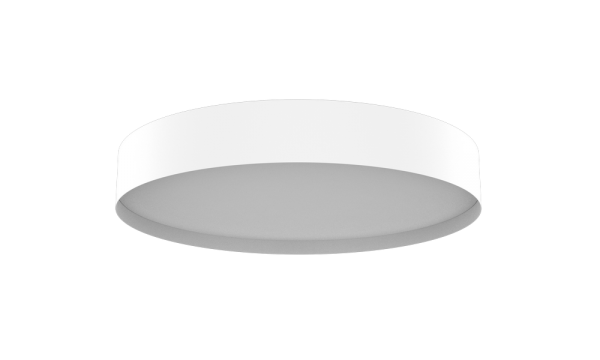

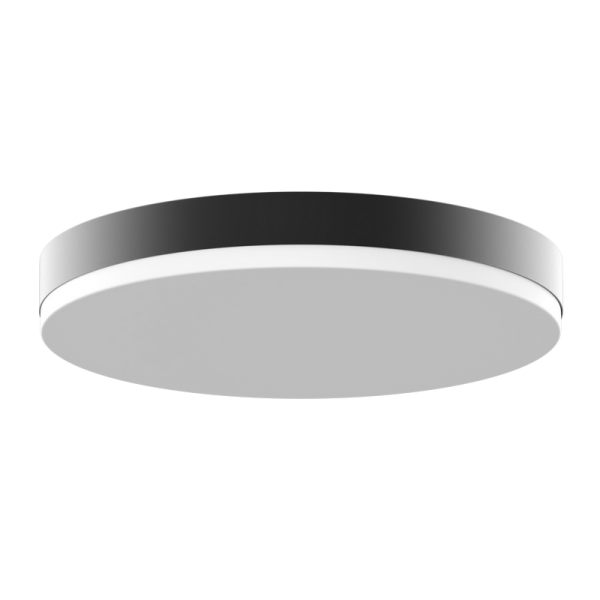

Surface mounted luminaire Moon IP54

Surface mounted luminaire Moon IP54

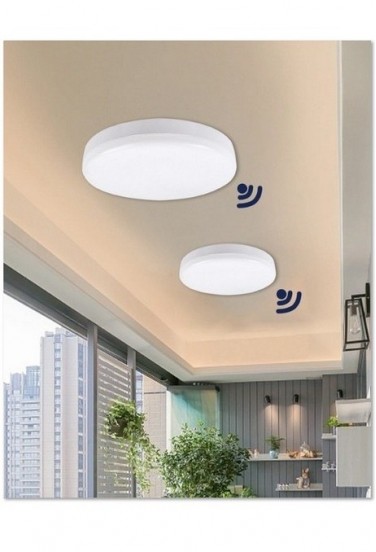

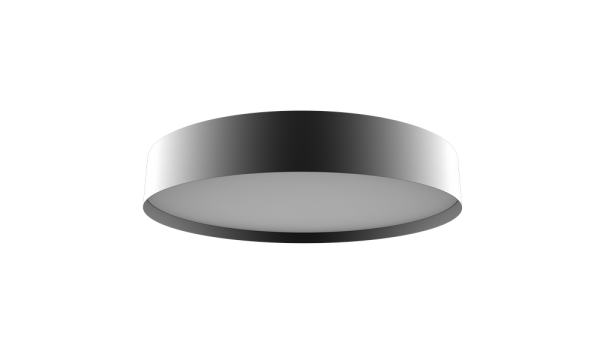

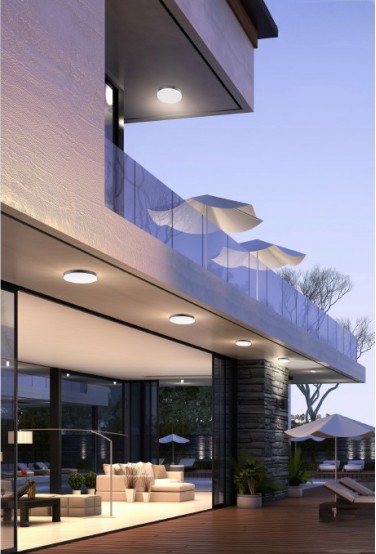

Modern LED ceiling light with IP54 protection, suitable for both residential and wet rooms. Minimalist black and white design, high luminous efficiency - 120-150 lm/W, ensuring economical and high-quality lighting.

Light characteristics
  • Lighting Effectiveness: 120 lm/W; 150 lm/W
  • Beam Angle: 135°
  • Temperature (CCT): 3000K-6000K
  • Color Rendering Index (CRI): Ra≥80
  • Standard deviation of color matching (MacAdam) SDCM: >3
  • LED chip type: SMD 2835
Common parameters
  • IP Rating: IP54
  • IK rating: IK07; IK10
  • Housing: PC
  • Housing colour: White
  • Warranty: 5 years
  • Certificates: CE; ROHS
Electrical data
  • Voltage: AC 200-240V
  • Power Factor (PF): >0.9
  • Harmonic Distortion: <20% (THD)
  • Electrical Safety Class: II
  • Voltage after the power supply: 36-43V DC
Operating conditions
  • Life time (LM80): 55000 h
  • Ambient Temperature: -20°C to +40℃
  • Dimmable: DALI; Motion sensor; Emergency
Model Power Light flux Size (mm) Photometry
CL-20KPW4-A 10W-20W 1200lm- 3000 lm Ø290x58 10W-20W.rar
CL-30KPW4-A 15W-30W 1800 lm- 4500 lm Ø360x58 15W-30W.rar
CL-40KPW4-A 20W-40W 2400 lm- 6000 lm Ø460x58 20W-40W.rar

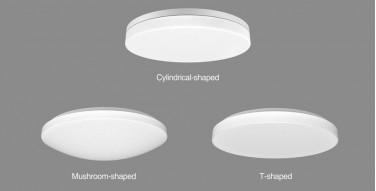

Shape

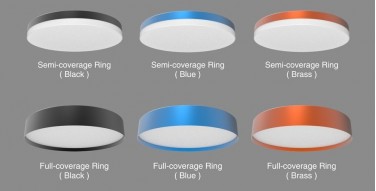

Frame

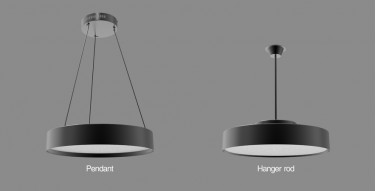

Fixing
